• Motor power (HP) 10-125
• Motor power (kW) 7-90
• Working pressure (bar) 7-13
• Volumetric capacity (m³/min) 0.6-16.0
• Applicable supply voltage (V) 220/380/415/440/460
• Applicable supply frequency (Hz) 50/60

Description

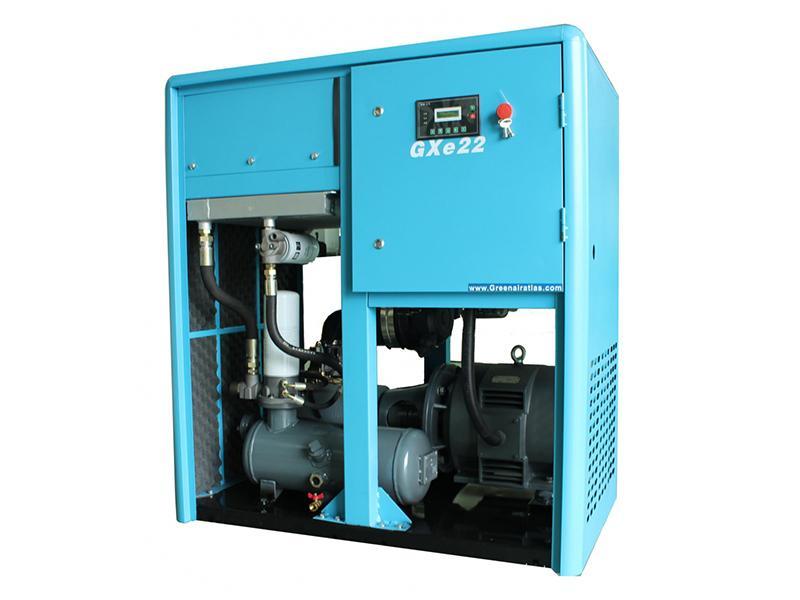

The Atlas Greenair GXe series compressor is designed for a high temperature operation, performing well in temperatures up to 46℃ while maintaining a stable operation and avoiding any shutdowns caused by high temperatures or overheat operation of air compressor units.

The GXe series compressor is more durable due to its requirements for less maintenance required than other models, and is popular with customers all over the world.

Cooling system
The Atlas Greenair GXe series compressor uses an air-cooler motor with an IP rating of TEPC, which is able to avoid being contaminated by conventional pollutants and prevents dust build-up inside the motor, making it durable, safe and reliable.

This air-cooler motor is designed with sickle-shaped fan blades, which helps to reduce air flow resistance, lower the compressor operating noise and more importantly, raise the operation efficiency of the air compressor.

Oil-gas separator
An external oil-gas separator is easy to install and features a low oil consumption.

Intelligent controller
The Atlas Greenair GXe series compressor uses an intelligent and visual controller, providing optional control software for clients to adjust operating parameters.

Direct drive
A direct drive with a non-gear variable speed reduces energy consumption and produces a higher drive efficiency of the air compressor.

Star delta starter
The star delta starter lowers the instantaneous current of the compressor the moment it starts. This increases the service life of compressor parts, and makes the system more reliable.

• GAVSD series high efficient asynchronous motor.
• Specifications are specified according to ISO1217.ED3.Annex C.1996.
• Atlas Greenair is able to provide customized compressors diverse in specifications and power supply.
• Operating condition: With the inlet absolute pressure of 1bar and inlet temperature of 20℃.
