- Motor power (HP) 15-335
- Motor power (kW) 11-250
- Working pressure (bar) 7-13
- Volumetric capacity (m³/min) 1.02-42.88
- Voltage (V) 220/380/415/440/460
- Frequency (Hz) 50/60
Description
Atlas Greenair's ZR series oil free rotary screw air compressor features water rather than oil lubrication, and requires water, water filter and air filter as the basic necessities for daily maintenance. By using this compressor, oil and gas contamination is avoided and maintenance costs for the compressor are reduced. Because it is so environmentally friendly and cost effective, it is among the best choices for projects that require GMP certified, high quality air sources, such as pharmaceutical and food industries.
Characteristics
Cooling system
At Atlas Greenair, a highly efficient cooling system is chosen for the rotary screw air compressor to ensure normal operation of the air compressor, even when the temperature is lower than 50℃, giving the compressor a long service life. We have air-cooling and water-cooling methods to meet customer requirements.
Variable frequency and variable speed
With an optional variable frequency system, the speed can be adjusted within the variable supply frequency and is highly efficient.
Oil-free lubrication
The air end is water lubricated with no lubrication oil inside the air end.
High efficient air end
A single screw stainless steel air end is designed with an air compressor star wheel with the working pressure up to 1.3Mpa.
Stable performance
Performance levels of this air compressor meet ISO1217 standards, giving it a high quality performance, low noise levels and no vibration.
Optional models
| Model | ZR11 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 1.55 | 1.32 | 1.02 |
| motor power | kW/HP | 11/15 |
| Sound pressure level (SPL) | dB(A) | 58 |
| weight | Kg | 540 |
| L×W×H | (mm) | 1400×870×1180 |
| |
| Model | ZR15 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 2.4 | 2.12 | 1.61 |
| motor power | kW/HP | 15/20 |
| Sound pressure level (SPL) | dB(A) | 63 |
| weight | Kg | 650 |
| L×W×H | (mm) | 1400×870×1180 |
| |
| Model | ZR22 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 3.5 | 3.13 | 2.61 |
| motor power | kW/HP | 22/30 |
| Sound pressure level (SPL) | dB(A) | 65 |
| weight | Kg | 870 |
| L×W×H | (mm) | 1850×11300×1500 |
| |
| Model | ZR30 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 5 | 4.2 | 3.81 |
| motor power | kW/HP | 30/40 |
| Sound pressure level (SPL) | dB(A) | 66 |
| weight | Kg | 980 |
| L×W×H | (mm) | 1850×1300×1180 |
| |
| Model | ZR37 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 6.1 | 5.22 | 4.81 |
| motor power | kW/HP | 37/50 |
| Sound pressure level (SPL) | dB(A) | 67 |
| weight | Kg | 1000 |
| L×W×H | (mm) | 1850×1300×1500 |
| |
| Model | ZR45 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 7.3 | 6.13 | 5.65 |
| motor power | kW/HP | 45/60 |
| Sound pressure level (SPL) | dB(A) | 68 |
| weight | Kg | 1060 |
| L×W×H | (mm) | 1850×1300×1500 |
| |
| Model | ZR55 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 9.6 | 8.6 | 7.42 |
| motor power | kW/HP | 55/75 |
| Sound pressure level (SPL) | dB(A) | 70 |
| weight | Kg | 1250 |
| L×W×H | (mm) | 1850×1300×1500 |
| |
| Model | ZR75 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 12.5 | 11.42 | 9.83 |
| motor power | kW/HP | 75/100 |
| Sound pressure level (SPL) | dB(A) | 73 |
| weight | Kg | 1480 |
| L×W×H | (mm) | 1850×1300×1500 |
| |
| Model | ZK90 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 16.3 | 14.52 | 12.3 |
| motor power | kW/HP | 90/125 |
| Sound pressure level (SPL) | dB(A) | 73 |
| weight | Kg | 2030 |
| L×W×H | (mm) | 2600×1480×1700 |
| |
| Model | ZR110 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 19.4 | 16.9 | 15.1 |
| motor power | kW/HP | 110/150 |
| Sound pressure level (SPL) | dB(A) | 78 |
| weight | Kg | 2450 |
| L×W×H | (mm) | 2600×1480×1700 |
| |
| Model | ZR132 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 22.21 | 20.38 | 18.29 |
| motor power | kW/HP | 132/175 |
| Sound pressure level (SPL) | dB(A) | 78 |
| weight | Kg | 2850 |
| L×W×H | (mm) | 2600×1480×1700 |
| |

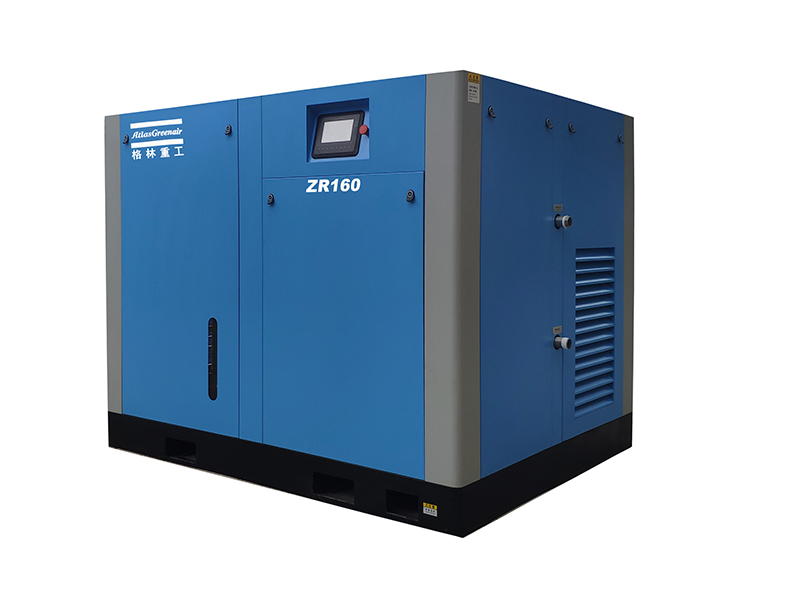

| Model | ZR160 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 28.85 | 24.52 | 22.17 |
| motor power | kW/HP | 160/215 |
| Sound pressure level (SPL) | dB(A) | 78 |
| weight | Kg | 3750 |
| L×W×H | (mm) | 3300×2200×2000 |
| |
| Model | ZR200 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 36.63 | 32.7 | 27.72 |
| motor power | kW/HP | 200/270 |
| Sound pressure level (SPL) | dB(A) | 78 |
| weight | Kg | 4100 |
| L×W×H | (mm) | 3300×2200×2000 |
| |
| Model | ZR250 |
| working pressure | Mpa | 0.8 | 1 | 1.25 |
| capacity | M3/min | 42.88 | 39 | 34.64 |
| motor power | kW/HP | 250/335 |
| Sound pressure level (SPL) | dB(A) | 78 |
| weight | Kg | 4750 |
| L×W×H | (mm) | 3300×2200×2000 |
| |
Notes
- The above mentioned types are with fixed speed and fixed frequency by default, but an variable frequency system is also optional.
- We are able to provide customized products with different speficications.
