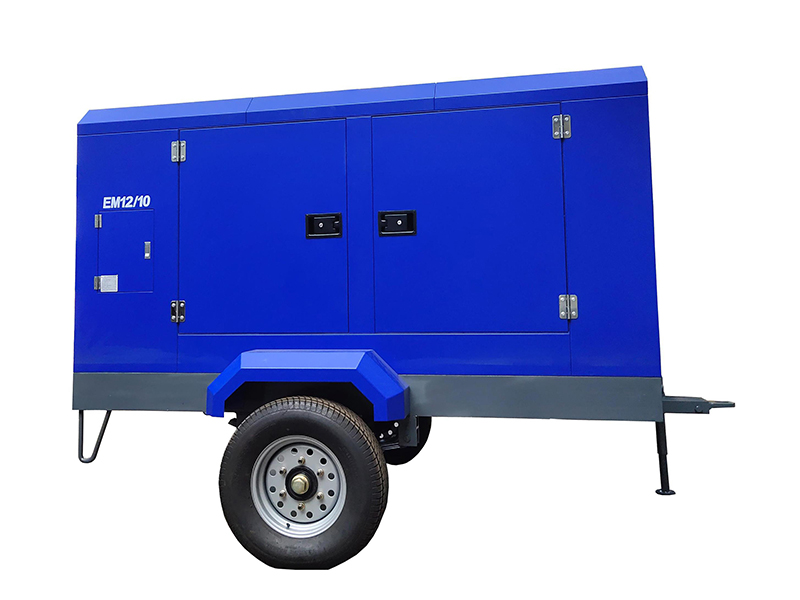

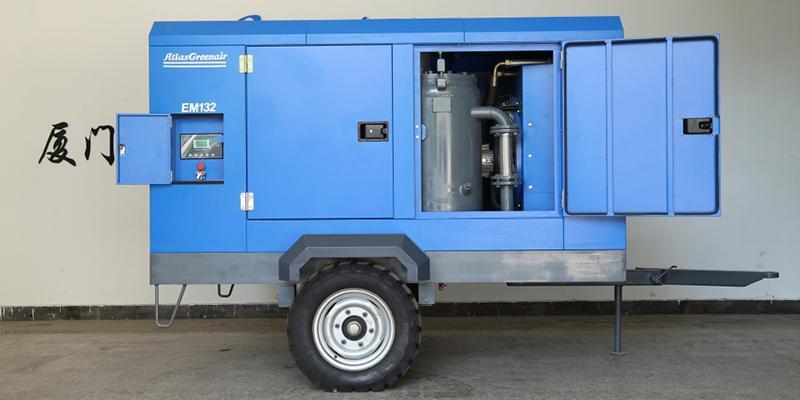

Portable Electric Rotary Screw Compressor

Portable Electric Rotary Screw Compressor
  • Air displacement pressure (MPa) 0.7-2.5Mpa
  • Air displacement capacity (m³/min) 4.8-35㎥/min
  • Motor power range 37-250Kw
See detailed types

Description
The portable rotary screw electric air compressor features a forced air intake with the volumetric efficiency remaining unaffected by air displacement pressure. This ensures the compressor's high efficient operation within a wide speed change range. Currently, it is a popular choice for outdoor operational projects to its exceptional balance and portability.

Advantages
Easy maintenance

Easy maintenance
As there are few vulnerable parts for the Atlas Greenair portable rotary screw electric air compressor, it is more reliable and durable with intervals between compressor overhauls up to 40,000-80,000 hours.

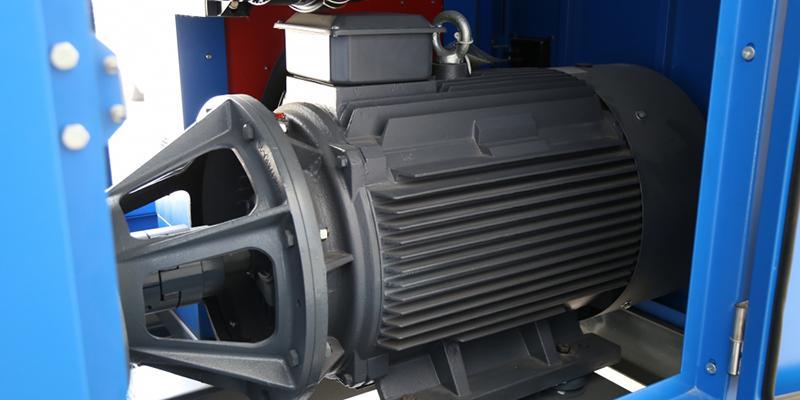

Split type

Split type
With the air end and motor connected by highly flexible coupling, the drive efficiency of the air compressor is greatly improved, making it easier to install and dismantle.

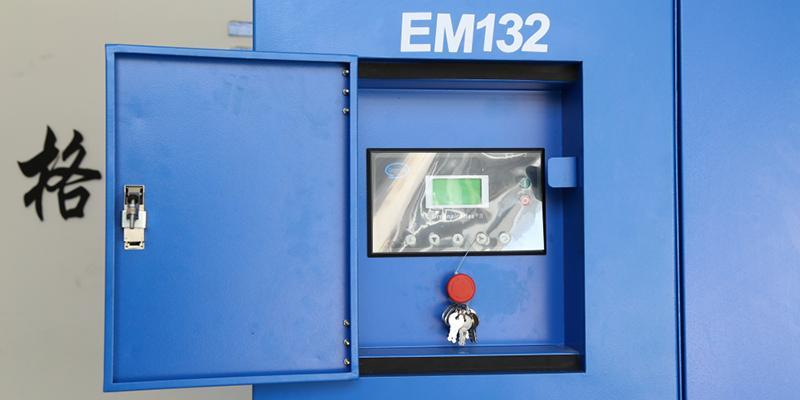

Intelligent control system

Intelligent control system
An intelligent control system uses an RS communication interface, making it convenient for computer remote control. As it is highly automated, the control system can achieve unattended operation, thus avoiding the need for extensive operator training.

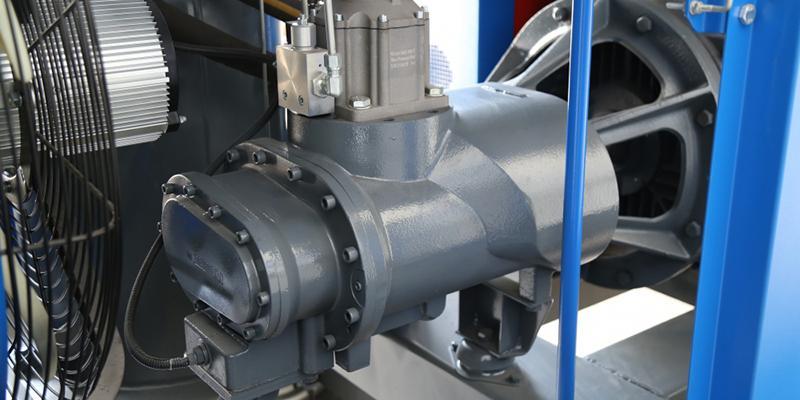

High efficient air end

High efficient air end
A twin rotary screw air end is designed with a large rotor, which can produce a large air volume. It also uses SKF bearings, ensuring the compressor has a longer service life.

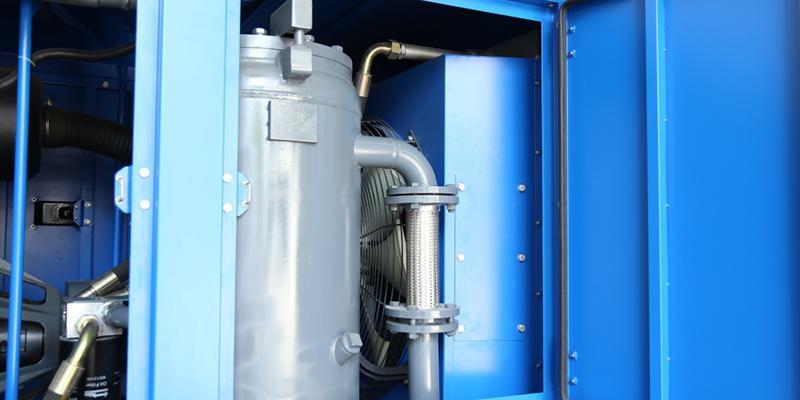

Oil-air separator

Oil-air separator
Atlas Greenair uses a three stage oil-air separator which helps to reduce oil content of the compressed air the coolant supply frequency.

Optional models
Model Air displacement (㎥/min) Working pressure (MPa) Motor power(kW) Overall dimension L×W×H (mm)
EM6.5/7G 6.5 0.7 37 3090×1520×1500
EM6.5/7 6.5 0.7 37 3090×1520×1500
EM5.6/10 5.6 1 37 3090×1520×1500
EM-4.8/13 4.8 1.3 37 3090×1520×1500
EM-7.4/7G 7.4 0.7 45 3090×1520×1500
EM-7.4/7 7.4 0.7 45 2850×1520×1500
EM-6.5/10 6.5 1 45 2850×1520×1500
EM-5.6/13 5.6 1.3 45 2850×1520×1500
EM-10.5/7G 10.5 0.7 55 3320×1660×1800
EM-8.7/10 8.7 1 55 3320×1660×1800
EM-7.5/10 7.5 1 55 3320×1660×1800
EM-13/7G 13 0.7 75 3850×2040×1980
EM-12/10G 12 1 75 3850×2040×1980
EM-10/10G 10 1 75 3850×2040×1980
EM-13/7G 13 0.7 75 3320×1660×2000
EM-12/10G 12 1 75 3320×1660×2000
EM-10/10G 10 1 75 3320×1660×2000
EM-10/13 10 1.3 75 3600×1840×2010
EM-16.5/7G 16.5 0.7 90 3320×1660×2000
EM-14/10G 14 1 90 3320×1660×2000
EM-12/13G 12 1.3 90 3320×1660×2000
EM-20/7G 20 0.7 110 3550×1740×2100
EM-16/10G 16 1 110 3550×1740×2100
EM-13/13G 13 1.3 110 3550×1740×2100
EM-22/7G 22 0.7 132 3550×1740×2100
EM-20/10G 20 1 132 3550×1740×2100
EM-16/13G 16 1.3 132 3550×1740×2100
EM-27/8G 27 0.8 160 3870×1820×2200
EM-23/10G 23 1 160 3870×1820×2200
EM-20/13G 20 1.3 160 3870×1820×2200
EM-18/17G 18 1.7 185 3950×1820×2200
EM-35/8G 35 0.8 200 3870×1820×2250
EM-30/10G 30 1 200 3870×1820×2250
EM-26/20G 26 2 250 4200×1950×2350

Notes
We can also provide customized compressor products with different specifications.
