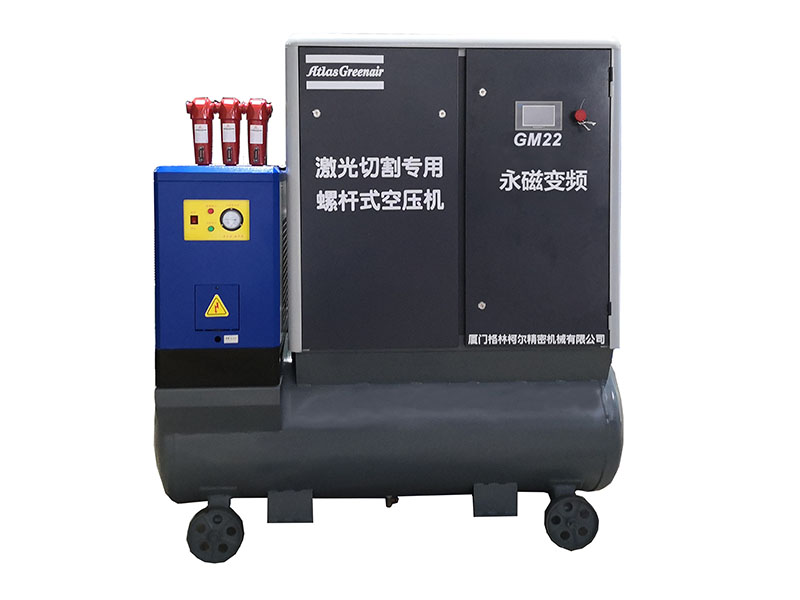

Screw Air Compressor for Laser Cutting Machine

• 1. All-in-one screw air compressor integrates air compressor, air dryer, tank and compressed filters in one unit, it is featured by less space occupying, free installation, easy to move and operation.
• 2. Special design of air end guarantees the smooth running of compressor at maximum working pressure of 16bar.
• 3. PM motor comes with PM inverter. The PM inverter helps adjust the rotary speed according to air demand, energy saving can reach a maximum of 50%.
• 4. VSD keeps the stable output pressure, efficiently protecting the laser cutting machine.
• 5. Through the high efficient refrigerated air dryer and compressed filters, the water from compressed air is removed and oil content is under 0.01ppm.

Optional models

Model	FAD m³/min	Working pressure bar	Motor power KW/HP	Weight kg	Size of outlet
GM7	0.6	16	7.5/10	450	G¾''
GM11	0.9	16	11/15	580	G¾''
GM15	1.2	16	15/20	680	G1''
GM22	2.2	16	22/30	780	G1''
